mini-lab

The mini-lab is a small, virtual setup to locally run the metal-stack. It deploys the metal control plane and a metal-stack partition with two simulated leaf switches. The lab can be used for trying out metal-stack, demonstration purposes or development.

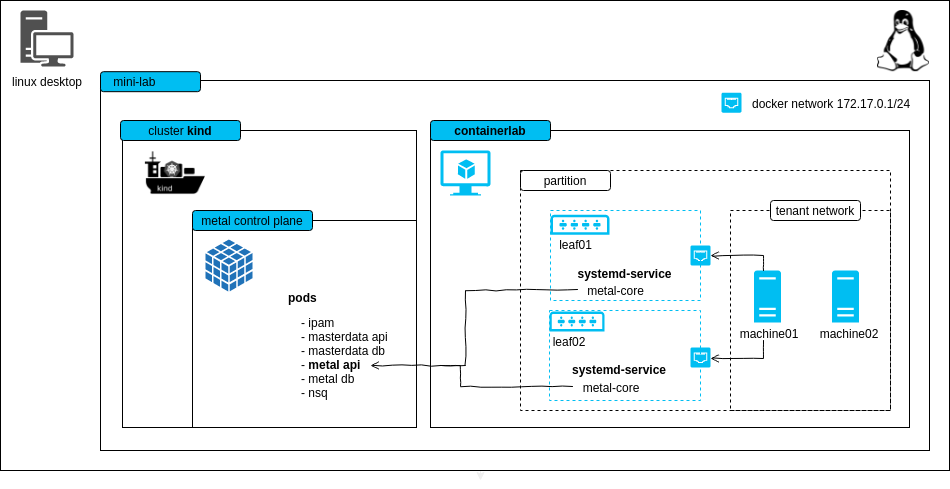

overview components

ℹ This project can also be used as a template for writing your own metal-stack deployments.

Requirements​

  • Linux machine with hardware virtualization support
  • kvm as hypervisor for the VMs (you can check through the kvm-ok command)
  • docker >= 24.x.y (for using kind and our deployment base image)
  • kind == v0.23.0 (for hosting the metal control plane)
  • containerlab >= v0.56.0
  • the lab creates a docker network on your host machine with the address block 203.0.113.0/24, designated as TEST-NET-3 for documentation and examples.
  • (recommended) haveged to have enough random entropy (only needed if the PXE process does not work)

Here is some code that should help you to set up most of the requirements:

# If UFW enabled.
# Disable the firewall or allow traffic through Docker network IP range.
sudo ufw status
sudo ufw allow from 172.17.0.0/16

# Install kvm
sudo apt install -y git curl qemu qemu-kvm haveged

# Install Docker
curl -fsSL https://get.docker.com | sh
# if you want to be on the safe side, follow the original installation
# instructions at https://docs.docker.com/engine/install/ubuntu/

# Ensure that your user is member of the group "docker"
# you need to login again in order to make this change take effect
sudo usermod -G docker -a ${USER}

# Install containerlab
bash -c "$(curl -sL https://get.containerlab.dev)"

# Install kind (kubernetes in docker), for more details see https://kind.sigs.k8s.io/docs/user/quick-start/#installation
sudo curl -Lo /usr/local/bin/kind "https://kind.sigs.k8s.io/dl/v0.20.0/kind-linux-amd64"
sudo chmod +x /usr/local/bin/kind

The following ports are used statically on your host machine:

PortBind AddressDescription
64430.0.0.0kube-apiserver of the kind cluster
44430.0.0.0HTTPS ingress
41500.0.0.0nsqd
80800.0.0.0HTTP ingress

Known Limitations​

  • to keep the demo small there is no EVPN
  • machine restart and destroy does not work because we cannot change the boot order via IPMI in the lab easily (virtual-bmc could, but it's buggy)
  • login to the machines is possible with virsh console, login to the firewall is possible with SSH from your local machine

Try it out​

git clone https://github.com/metal-stack/mini-lab.git
cd mini-lab

Start the mini-lab with a kind cluster, a metal-api instance as well as two containers wrapping leaf switches and another container that hosts two user-allocatable machines:

make
# containerlab will ask you for root permissions (https://github.com/srl-labs/containerlab/issues/669)

After the deployment and waiting for a short amount of time, two machines in status PXE booting become visible through metalctl machine ls:

docker compose run --rm metalctl machine ls

ID                                          LAST EVENT   WHEN     AGE  HOSTNAME  PROJECT  SIZE          IMAGE  PARTITION
00000000-0000-0000-0000-000000000001        PXE Booting  3s
00000000-0000-0000-0000-000000000002        PXE Booting  5s

Wait until the machines reach the waiting state:

docker compose run --rm metalctl machine ls

ID                                          LAST EVENT   WHEN     AGE  HOSTNAME  PROJECT  SIZE          IMAGE  PARTITION
00000000-0000-0000-0000-000000000001        Waiting      8s                               v1-small-x86         mini-lab
00000000-0000-0000-0000-000000000002        Waiting      8s                               v1-small-x86         mini-lab

Create a firewall and a machine with:

make firewall
make machine

Alternatively, you may want to issue the metalctl commands on your own:

docker compose run --rm metalctl network allocate \
        --partition mini-lab \
        --project 00000000-0000-0000-0000-000000000000 \
        --name user-private-network

# lookup the network ID and create a machine
docker compose run --rm metalctl machine create \
        --description test \
        --name machine \
        --hostname machine \
        --project 00000000-0000-0000-0000-000000000000 \
        --partition mini-lab \
        --image ubuntu-24.4 \
        --size v1-small-x86 \
        --networks <network-ID>

# create a firewall that is also connected to the virtual internet-mini-lab network
docker compose run --rm metalctl machine create \
        --description fw \
        --name fw \
        --hostname fw \
        --project 00000000-0000-0000-0000-000000000000 \
        --partition mini-lab \
        --image firewall-ubuntu-3.0 \
        --size v1-small-x86 \
        --networks internet-mini-lab,$(privatenet)

See the installation process in action

make console-machine01/02
...
Ubuntu 24.04 machine ttyS0

machine login:

Two machines are now installed and have status "Phoned Home"

docker compose run --rm metalctl machine ls
ID                                          LAST EVENT   WHEN   AGE     HOSTNAME  PROJECT                               SIZE          IMAGE               PARTITION
00000000-0000-0000-0000-000000000001        Phoned Home  2s     21s     machine   00000000-0000-0000-0000-000000000000  v1-small-x86  Ubuntu 24.04        mini-lab
00000000-0000-0000-0000-000000000002        Phoned Home  8s     18s     fw        00000000-0000-0000-0000-000000000000  v1-small-x86  Firewall 3 Ubuntu   mini-lab

Login with user name metal and the console password from

docker compose run --rm metalctl machine consolepassword 00000000-0000-0000-0000-000000000001

To remove the kind cluster, the switches and machines, run:

make cleanup

Reinstall machine​

Reinstall a machine with

docker compose run --rm metalctl machine reinstall \
        --image ubuntu-24.4 \
        00000000-0000-0000-0000-000000000001

Free machine​

Free a machine with make free-machine01 or

docker compose run --rm metalctl machine rm 00000000-0000-0000-0000-000000000001

Flavors​

There are two versions, or flavors, of the mini-lab environment which differ in regards to the NOS running on the leaves:

  • cumulus: runs 2 Cumulus switches.
  • sonic: runs 2 SONiC switches
  • capms: runs the SONiC flavor but with three instead of two machines (this is used for cluster-provider-metal-stack in order to have dedicated hosts for control plane / worker / firewall)
  • gardener: installs the Gardener in the mini-lab

In order to start specific flavor, you can define the flavor as follows:

export MINI_LAB_FLAVOR=sonic
make

Network topology​

An Nginx is running inside of the www container to allow automatic testing of outgoing connections.

Network topology
